Full DEF Delete Kit | GM/Chevy Duramax LM2 3.0L | 2022.5-2026

2022-2026 LM2 3.0 Duramax DEF Delete Kit | Improve Reliability

The 2022, 2023, 2024, 2025, 2026 3.0 Duramax DEF delete kit is an All-in-One bundle designed for supported GM and Chevy Silverado 1500 and GMC Sierra 1500 pickup trucks using the E66 / Global B 3.0L Duramax platform. The complete package combines OBD2 tuning hardware, custom calibration, ECM unlock support, a 3-inch turbo-back exhaust, and EGR removal components. It is designed to remove the factory DPF, DEF, and EGR emissions systems for lawful off-road and racing applications while matching the ECU calibration to the changed hardware.

Unlike the earlier 2020-early 2022 E46 solution, this later platform uses the E66 ECM and requires an unlock before tuning. Once the mechanical parts are installed and the correct tune is flashed, the factory controller no longer operates the removed aftertreatment system or requests DPF regeneration. The upgrade can improve exhaust flow, throttle response, and overall engine operation while eliminating DEF-related maintenance on the modified truck. Actual performance, efficiency, and reliability still depend on vehicle condition, driving conditions, and installation quality.

Why Choose This Kit

• E66 / Global B-Specific Solution - built for the later 2022.5-2026 3.0L Duramax electronic platform rather than the earlier E46 configuration.
• Complete Tuning Package - includes the OBD2 programming interface, required tuning credits, custom tune, and ECM unlock option.
• Matched Mechanical Hardware - the package combines tuning with a 3″ exhaust system and EGR components designed for the supported application.
• Vehicle-Specific Calibration - the tune is prepared for the truck rather than using a generic universal file.
• Technical Support - setup, ECM processing, programming, and installation guidance are available throughout the upgrade process.

Vehicle Compatibility

The main fitment requirement is the E66 / Global B ECM. A 2022 truck should not be selected by model year alone because early and refreshed 2022 applications may use different electronic configurations. Confirm the VIN and ECM before ordering.

Later 3.0L GM applications may use different factory engine designations even though this shop groups the supported E66 products under the LM2 category, so VIN and controller verification remain the best source for final compatibility.

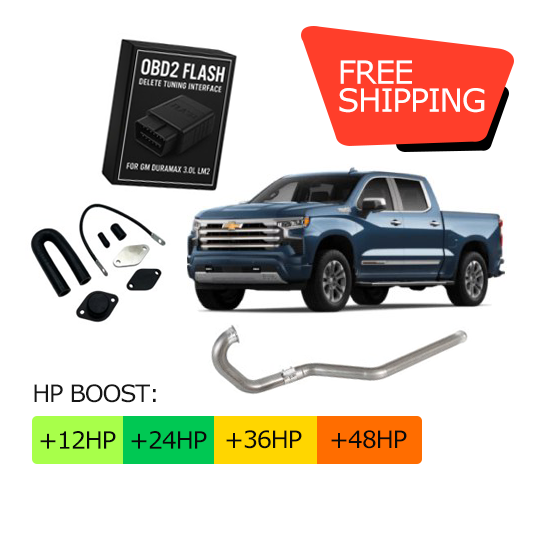

Kit Components

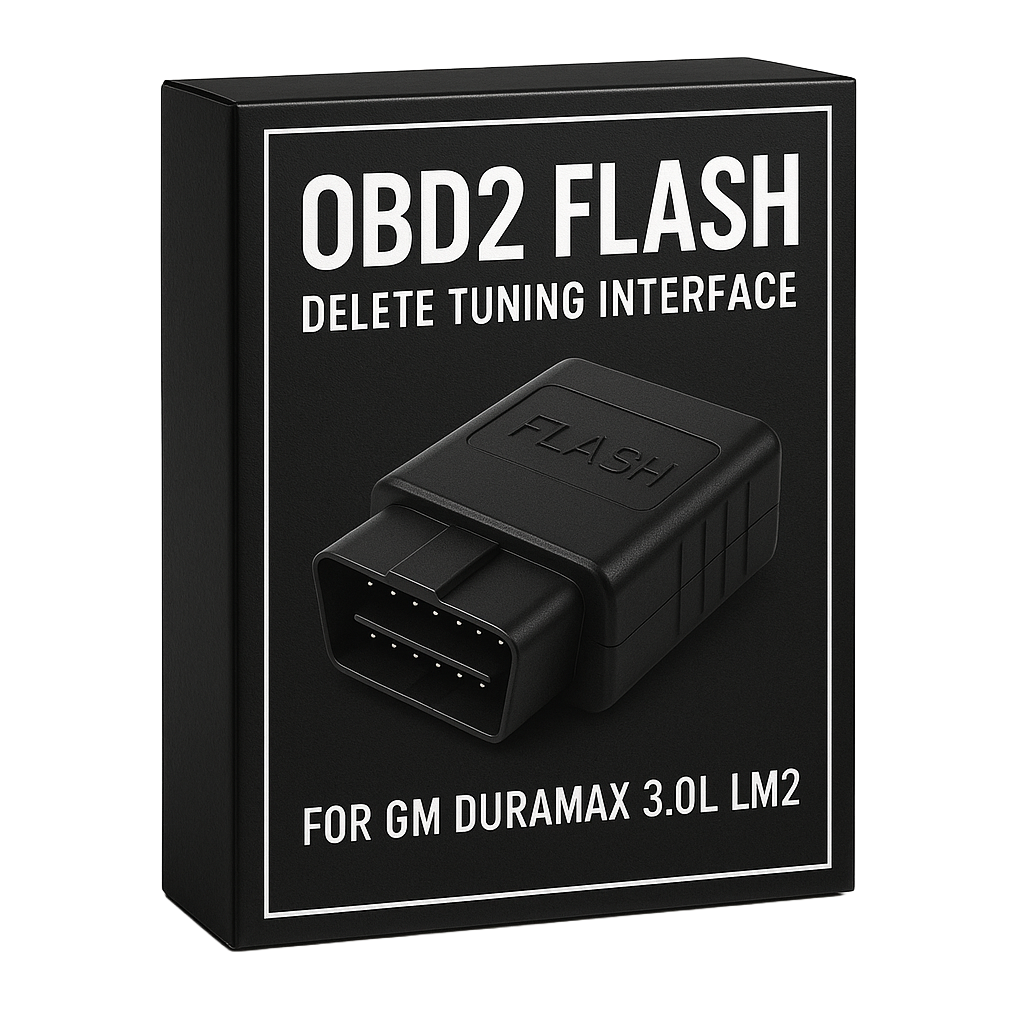

• OBD2 Flash Tuning Interface - MPVI-platform programming hardware used to communicate with the truck and flash the custom calibration through the diagnostic port after the ECM has been unlocked.
  • 6 Universal Tuning Credits - required to license the E66 ECM and enable the supported tuning process.
  • Custom Tune File - a vehicle-specific calibration designed for the E66 / Global B platform. It adjusts the ECU strategies associated with the removed emissions hardware and optimizes fueling, boost control, throttle response, and drivability.
  • ECM Unlock Service - E66 controllers require a bench unlock before they can accept the custom tune. If the unlock option is selected, the truck's original ECM must be removed and sent for the special unlock procedure before being returned ready for flashing.

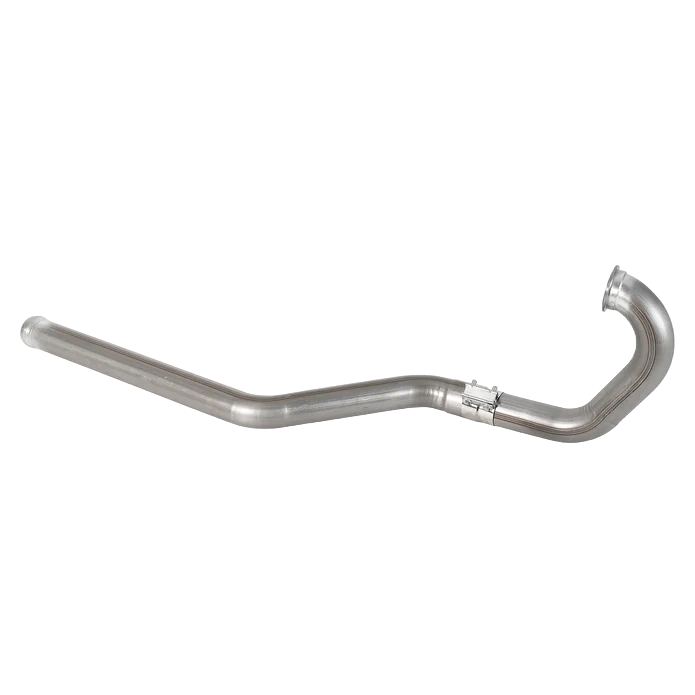

• 3″ CAT & DPF Delete Turbo-Back Exhaust - stainless steel exhaust system that replaces the restrictive factory catalyst and particulate-filter section. The larger, freer-flowing pipe reduces backpressure and provides a direct exhaust path from the turbo-back section.

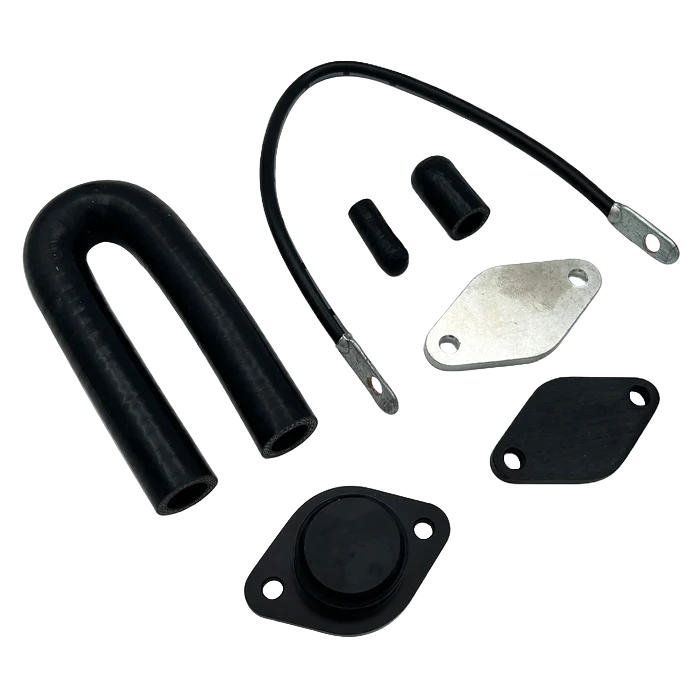

• EGR Delete Kit - includes the parts required to remove the applicable EGR valve and cooler system. This prevents exhaust gases from being recirculated through the intake after the matching electronic calibration is installed.
• Installation Hardware - includes the necessary clamps, connections, and related components required for the supplied exhaust and EGR hardware.
• Instructions & Technical Support - covers ECM shipping, tuner setup, tune delivery, flashing, and the main installation steps.

Tuning & Performance

The 3.0 Duramax DEF delete works by matching physical DPF, DEF, and EGR removal with an ECU calibration built for the modified configuration. The hardware removes the restrictive factory components, while the tune changes the ECM control strategies that would otherwise continue monitoring those systems, requesting regeneration, and generating related warnings.

For this E66 application, the ECM must first be unlocked. After the original controller is returned and reinstalled, the MPVI interface and tuning credits are used to license the ECM and flash the supplied calibration through OBD2.

Available Tune Levels

These are fixed calibrations rather than shift-on-the-fly settings; traditional SOTF switching is not supported on this package.

A properly completed DEF delete for 3.0 Duramax can eliminate DPF regeneration cycles, DEF-related operation, and exhaust restriction from the removed factory hardware. The +20 HP tune can provide a mild increase in power and improved throttle response without turning the package into an aggressive high-horsepower setup. Fuel economy may improve under some operating conditions, but no specific MPG result is guaranteed.

Installation

Professional installation is recommended because the 2022-2026 LM2 DEF delete kit combines mechanical exhaust and EGR work with ECM removal, bench unlocking, and electronic programming.

Typical installation requires:

• Standard metric hand tools
• Ratchets, sockets, and extensions
• Exhaust removal tools
• Penetrating oil
• Vehicle lift or suitable jack stands
• Windows laptop
• MPVI tuning software
• Stable battery charger or power supply
• Appropriate safety equipment

The typical process is:

1. Confirm the VIN and E66 ECM configuration.
2. Remove the original ECM from the truck.
3. Send the ECM for the required bench unlock.
4. Reinstall the unlocked ECM after it is returned.
5. Install the 3″ turbo-back DPF/DEF exhaust hardware.
6. Install the EGR valve and cooler delete components.
7. Connect the OBD2 programming interface.
8. License the ECM using the supplied credits.
9. Load the correct custom tune.
10. Start the engine and verify normal operation.

Mechanical installation time varies with corrosion, equipment, and installer experience. The ECM unlock also adds processing and shipping time because the original controller must leave the vehicle before final programming can be completed.

Ordering Information

Before ordering the LM2 Duramax DEF delete kit, confirm that the truck uses the E66 / Global B controller covered by this product.

The ECM Unlock Service option should be selected if the original E66 controller has not already received the required compatible unlock. The original ECM—not a replacement spare - must be used for the unlock process when required.

DPF delete tuners generally require approximately 3-4 business days, while delete pipes and exhaust products typically require approximately 5-6 days. EGR kits generally arrive in approximately 5 days. Components may be shipped separately.

Custom tune files and ECM services are vehicle-specific. Programmed electronics, completed unlock services, custom digital products, and other special-order parts may not be eligible for return after processing has begun. Confirm the VIN, ECU type, vehicle configuration, and intended use before ordering.

This package is intended only for lawful off-road, racing, or competition applications. The customer is responsible for confirming compliance with applicable emissions regulations before purchase and installation.
