Full DEF Delete Kit | GM/Chevy Duramax LM2 3.0L | 2020-2022

2020-2022 3.0 Duramax DEF Delete Kit | Improve Reliability

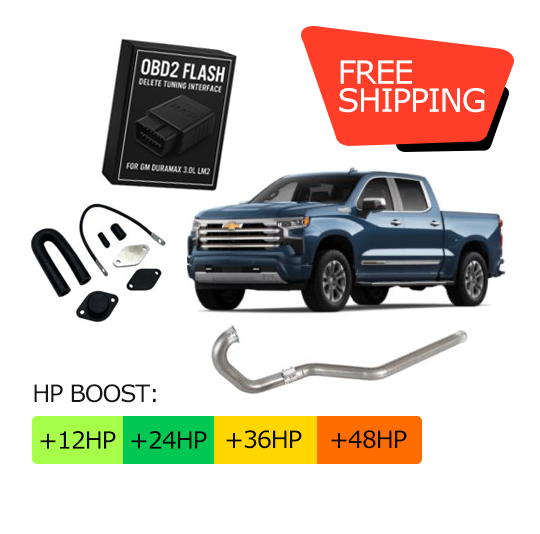

The 2020, 2021, 2022 3.0 Duramax DEF delete kit is an All-in-One bundle designed for Chevrolet Silverado 1500 and GMC Sierra 1500 trucks equipped with the 3.0L LM2 diesel engine. The complete package combines OBD2 tuning, ECM enhancement and unlock, EGR removal components, and a 3-inch stainless steel turbo-back exhaust system that replaces the factory CAT and DPF section. It is engineered as one coordinated solution for off-road and competition applications rather than requiring the owner to source the tuner, pipe, tune, and supporting parts separately.

The product removes the applicable DPF, DEF, and EGR emission hardware and recalibrates the ECU so the engine can operate with those systems removed. Once correctly installed, the calibration eliminates factory regeneration strategies and related DEF operation while the freer-flowing exhaust reduces restriction. The upgrade can improve throttle response and provide more consistent engine operation, although actual efficiency and long-term results depend on vehicle condition, maintenance, load, and use.

Why Choose This Kit

• Complete LM2-Specific Package - tuning, ECM unlock, EGR hardware, exhaust, and electronic integration components are supplied as one solution.
• Vehicle-Specific Calibration - developed for the 2020-2022 3.0L Duramax LM2 rather than a generic diesel tune.
• Two Confirmed Power Options - choose Stock Optimized (+0 HP) or Tow (+20 HP).
• 3″ Stainless Turbo-Back Exhaust - replaces the restrictive factory CAT and DPF section and improves exhaust flow.
• Matched Electronic Hardware - the OBD2 interface, tuning credits, E46 unlock, and CAN BUS components are designed to work together.

Vehicle Compatibility

The exact model year alone is not enough to confirm fit. Late-production 2022 GM trucks equipped with the E66 / Global B controller require a different tuning solution and are not compatible with this E46 package.

Kit Components

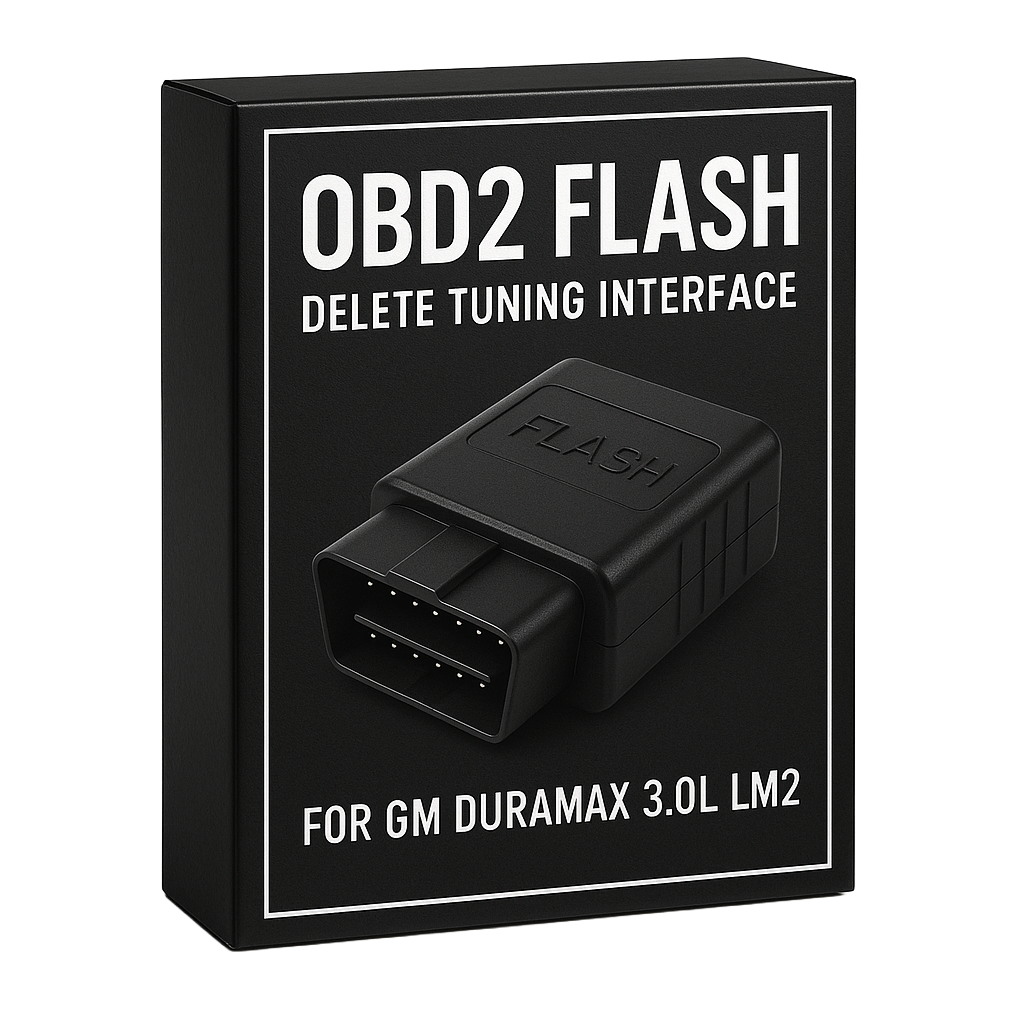

• OBD2 Programming Interface - connects through the truck’s diagnostic port and provides the hardware required to license and flash the supported ECM after the unlock process.
  • 6 Tuning Credits - provide the required software licensing for the supported tuning and programming process.
  • E46 ECM Enhancement & Unlock Service - mandatory for this configuration. The original ECM must be removed from the truck and shipped to the shop for professional enhancement and unlock before custom tuning can be installed.
  • Custom Tune - changes the factory control strategies for the removed emissions equipment and provides the selected power level.

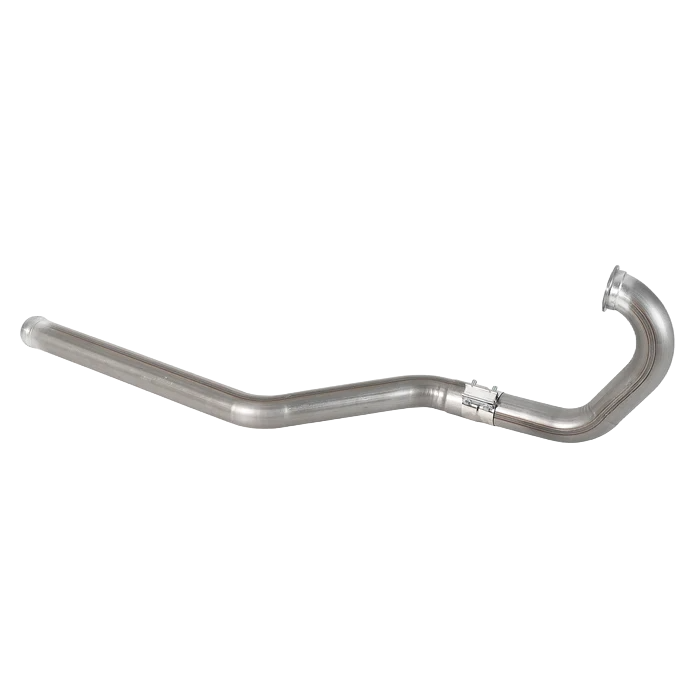

• 3″ CAT & DPF Delete Turbo-Back Exhaust - stainless steel exhaust hardware that replaces the applicable factory catalyst and particulate-filter section, reducing backpressure and creating a freer exhaust path.

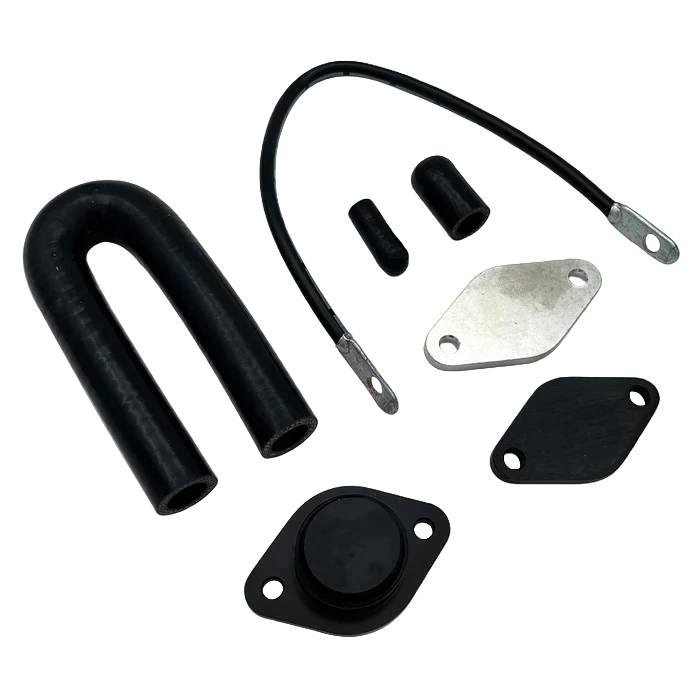

• Full EGR Delete Kit - removes the applicable EGR valve and cooler assembly to stop exhaust-gas recirculation after the matching calibration is installed.
• CAN BUS Plugs - maintain the required electronic integration with the vehicle after the emissions hardware has been removed.
• Clamps & Installation Hardware - secure the exhaust and related components during installation.
• Instructions & Technical Support - cover ECM shipping, tuner setup, file delivery, installation, and programming.

Tuning & Performance

The DEF delete for 3.0 Duramax requires the mechanical hardware and tuning to work as one system. Removing the DPF, DEF, and EGR equipment changes both exhaust flow and the feedback expected by the ECU, so the E46 controller must first be unlocked and then programmed with the correct calibration.

After installation, the truck no longer performs normal DPF regeneration or DEF-related functions associated with the removed hardware. The +20 HP tune provides a moderate power increase rather than an aggressive performance calibration. Fuel economy may improve in some conditions, but no specific MPG result is guaranteed.

Installation

The 2020-2022 3.0 Duramax DEF delete kit requires mechanical exhaust work, EGR removal, ECM removal, professional unlock, and electronic programming. A skilled installer will need standard metric hand tools, exhaust tools, safe lifting equipment, a stable battery charger, and a compatible computer for the tuning software.

The typical installation sequence is:

1. Confirm the VIN, LM2 engine, and E46 ECM.
2. Remove the original ECM.
3. Ship it for the required enhancement and unlock.
4. Reinstall the unlocked ECM.
5. Install the 3″ turbo-back exhaust.
6. Remove the EGR valve and cooler using the supplied parts.
7. Install the required CAN BUS plugs.
8. Connect the OBD2 tuner.
9. Apply the required credits and load the selected tune.
10. Verify normal engine operation.

Professional installation is recommended. Incorrect programming, unstable voltage, or using the wrong controller configuration can prevent successful flashing.

Ordering Information

Before ordering, verify that the truck is a 2020, 2021, or supported 2022 Silverado 1500 or Sierra 1500 with the LM2 engine and E46 ECM. Do not order this version for a late-2022 E66 / Global B truck.

Custom tuning and programmed electronics require vehicle-specific processing. Tuners generally require approximately 3-4 business days, exhaust products approximately 5-6 business days, and EGR components about 5 business days. Parts may ship from more than one source and can arrive separately.

Custom tuning files, completed unlock services, programmed electronics, and other customer-specific products may be non-returnable once processing begins. Modification of factory emissions equipment may also void applicable vehicle warranty coverage. Check the product terms, local laws, and vehicle configuration before purchase.
