DEF Delete Kit | Mercedes Sprinter 3.0L | 2019-2023

2019-2023 Mercedes Sprinter 3.0 DEF Delete Kit

The 2019, 2020, 2021, 2022, 2023 Sprinter DEF delete kit is an All-in-One bundle designed for supported Mercedes-Benz Sprinter 2500 and 3500 vans equipped with the 3.0L V6 diesel engine and compatible EDC17CP46 PCM. The package combines professional bench-flash ECU tuning with a 3-inch T-304 stainless-steel exhaust solution that replaces the restrictive factory DPF and aftertreatment section. It is intended for lawful off-road and competition applications where the factory DPF, DEF/SCR, and EGR control strategies are no longer required.

The kit coordinates mechanical removal with the correct electronic calibration so the ECU does not continue requesting regeneration or monitoring the removed emissions systems. The EGR valve is electronically disabled through the tune rather than removed with a standalone physical EGR kit. Reduced exhaust restriction can improve throttle response, exhaust flow, and overall engine efficiency. Available power levels provide up to +50 HP, while actual fuel economy, boost response, performance, and reliability depend on vehicle condition, load, maintenance, and the selected tune.

Why Choose This Kit

• Sprinter-Specific Bench Tuning - developed for supported EDC17CP46-equipped 3.0L Mercedes-Benz Sprinter applications.
• Three Calibration Options - choose Stock, Stage 1 (+40 HP), or Stage 2 (+50 HP).
• 3″ T-304 Stainless-Steel Exhaust Hardware - durable mandrel-bent piping is designed for precise fitment and improved exhaust flow.
• Electronic EGR Delete - the EGR system is disabled through tuning without requiring a separate physical EGR delete kit.
• Complete Matched Solution - tuning, exhaust components, clamps, and supporting hardware are configured around the same platform.

Vehicle Compatibility

The 2500/3500 Sprinter DEF delete kit is not a universal package for every Mercedes-Benz van. Compatibility depends on the 3.0L diesel engine and supported EDC17CP46 PCM. Earlier PCM variations, non-3.0L engines, and unsupported configurations require a different solution.

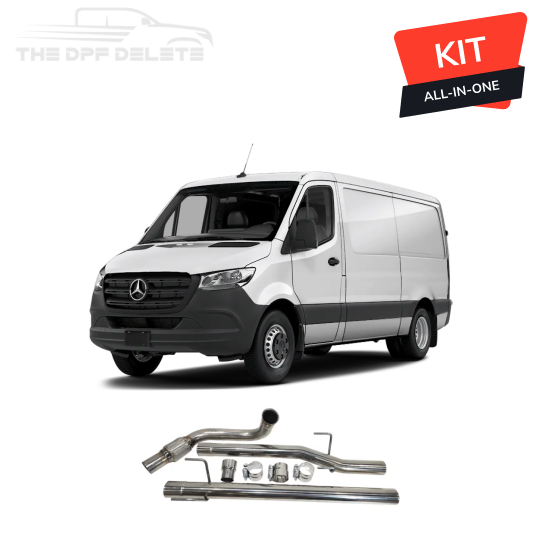

Kit Components

• Bench-Flash Delete Tuning - the ECM is professionally programmed off the vehicle with the selected Stock, Stage 1, or Stage 2 calibration. The tune disables the applicable DPF, DEF/SCR, and EGR-related control strategies.
  • Selected Tune - choose Stock, Stage 1 (+40 HP), or Stage 2 (+50 HP). Only the calibration selected for the vehicle is supplied.
• Delete Pipe Parts Kit
  • 3″ DPF Delete Downpipe - replaces the applicable factory exhaust section near the engine and begins the freer-flowing exhaust route.
  • 3″ Midpipe Section - continues the replacement exhaust path using mandrel-bent stainless-steel tubing designed to reduce restriction.
  • Reducer Adapter - connects the 3″ delete midpipe to the remaining stock exhaust section where applicable.
  • 3″ Exhaust Strap Clamps - provide secure, leak-resistant connections between the supplied exhaust components.
• EGR Electronic Deactivation - the factory EGR valve is disabled through ECU tuning rather than removed with a separate block-off kit. The valve should be clean and fully closed before deactivation.
• Installation Instructions & Service Support - cover ECM preparation, shipping, bench-flash service, exhaust installation, and final setup.

Tuning & Performance

The 2019-2023 Mercedes Sprinter DEF delete requires both mechanical exhaust modification and bench-flash ECU tuning. Removing the DPF and DEF/SCR hardware without the correct calibration would leave the factory controller monitoring missing components and continuing to request regeneration or aftertreatment operation.

For this platform, the ECM is removed from the van and sent to the tuning shop for bench programming. Once flashed and returned, the ECM is reinstalled and operates with the selected emissions-off calibration.

Available Tuning Options

The 3.0 Sprinter DEF delete kit can eliminate normal DPF regeneration, reduce exhaust restriction, improve throttle response, and provide stronger power delivery with the selected tune. Electronic EGR deactivation can also reduce heat cycling associated with exhaust-gas recirculation.

Fuel economy may improve under some operating conditions, but no specific MPG increase is guaranteed. Payload, route, idle time, engine condition, maintenance, driving style, and tune selection all influence actual efficiency.

Installation

Professional installation is recommended because this package combines exhaust removal with ECM removal and bench-flash programming.

Typical tools and equipment include:

• Metric sockets and wrenches
• Ratchets and extensions
• Penetrating lubricant
• Exhaust removal tools
• Vehicle lift or suitable heavy-duty stands
• Stable battery support
• Appropriate safety equipment

The typical installation process is:

1. Return the PCM to its factory calibration if it was previously modified.
2. Remove the ECM from the van.
3. Ship the ECM to the tuning shop using the supplied shipping process.
4. Have the ECM bench-flashed with the selected tune.
5. Reinstall the returned ECM.
6. Disconnect the applicable EGR, DPF, SCR, and AdBlue sensors as instructed.
7. Remove the factory DPF and aftertreatment exhaust section.
8. Install the supplied 3″ downpipe, midpipe, reducer, and clamps.
9. Verify normal operation after installation.

Bench-flash processing typically takes approximately 4–6 business days after the ECM is received, plus return transit time. Mechanical installation time varies depending on wheelbase, corrosion, body layout, and shop access.

Ordering Information

Choose one tuning option before checkout:

• Stock
• Stage 1 (+40 HP)
• Stage 2 (+50 HP)

The ECM must be removed and sent to the shop for bench-flash tuning. A prepaid shipping label is supplied for the ECM shipment, and the programmed unit is returned after the service is completed.

Delete pipes and exhaust components typically ship within approximately 5–6 business days. Bench-flash processing generally requires around 4–6 business days after the ECM reaches the tuning facility, plus approximately 2–3 days for return transit. The mechanical components and completed tuning service may therefore arrive at different times.

Custom ECU programming and completed bench-flash services are vehicle-specific and may become non-returnable once processing has started. Eligible unused hardware requires prior return authorization and must meet the applicable return conditions.

This product is intended only for lawful off-road, racing, or competition applications. The customer is responsible for checking applicable emissions laws before purchase and installation.
