DEF Delete Kit for L5P Duramax 2024-2025

The 2024, 2025 L5P DEF delete kit is an All-in-One bundle designed specifically for 6.6L Duramax L5P pickup trucks. It combines ECM tuning and unlock services with the parts required to remove the restrictive DPF, DEF/SCR, and EGR emission systems. The kit fits applicable 2024 and 2025 Chevy Silverado HD and GMC Sierra HD pickup models and provides a complete, vehicle-specific solution rather than a universal delete package.

Once the hardware is installed and the ECM is properly calibrated, the truck no longer relies on the factory regeneration and DEF control strategies associated with the removed components. The upgrade supports freer exhaust flow, eliminates DEF consumption and regeneration cycles, and allows the engine to operate with tuning matched to the modified hardware. Available exhaust and tuning options also allow the bundle to be configured around the intended off road application and desired performance level.

Why Choose This Kit

• Vehicle-Specific Tuning - custom calibration is prepared specifically for the 2024-2025 GM 6.6L L5P platform.
• Complete Delete Solution - combines ECM tuning, unlock requirements, DPF/DEF removal hardware, and EGR-related components in one package.
• Multiple Power Options - available tuning configurations include multiple performance levels with up to +180 HP.
• Flexible Exhaust Configuration - choose a delete pipe, 4-inch exhaust system, or 5-inch exhaust system with or without a muffler.
• Remote Tuning Support - vehicle information, stock file, and infolog are reviewed before the custom tune is prepared.

Vehicle Compatibility

This kit is designed for applicable 2024-2025 L5P pickup models. It is not the same tuning package used for earlier 2017-2023 L5P trucks, and Cab & Chassis applications are not supported by this configuration. Vehicle modifications should be disclosed before ordering so the correct tune and parts can be supplied.

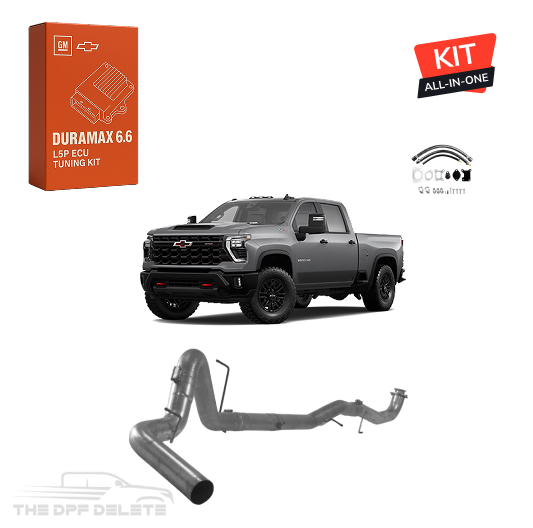

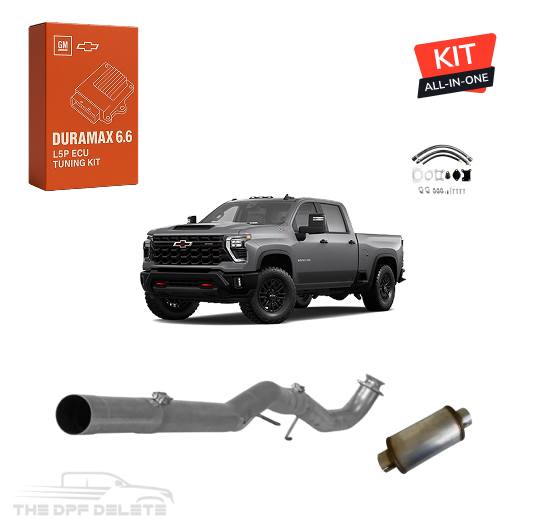

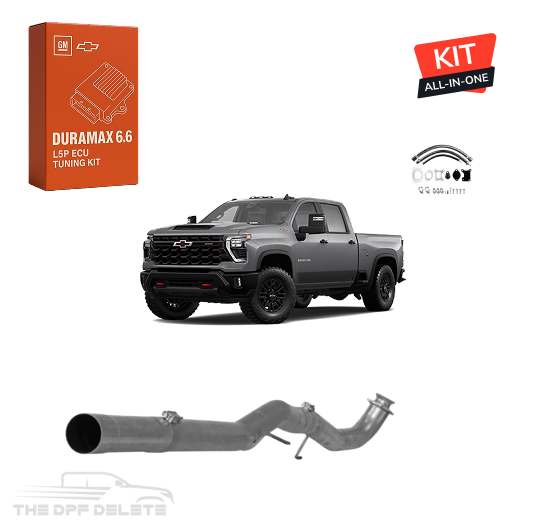

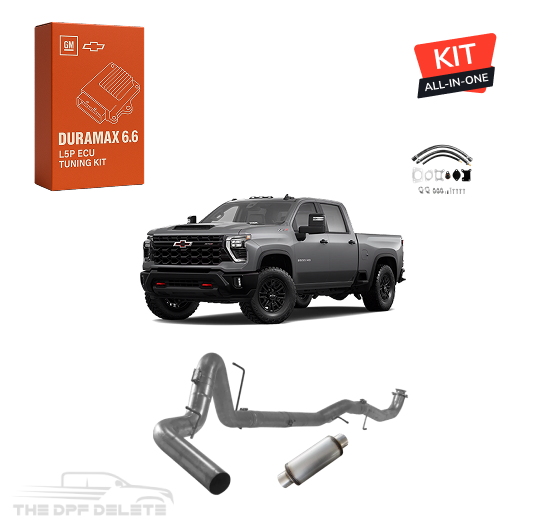

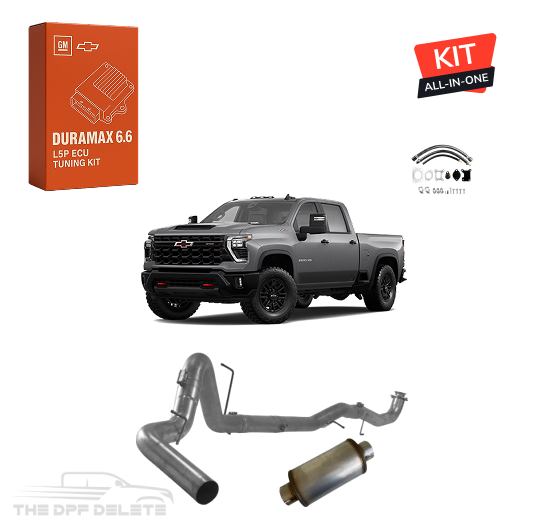

Kit Components

• ECU Unlock Tool / Unlock Service - the 2024-2025 L5P requires ECM unlocking before the custom calibration can be installed. The ECM must be removed from the truck and sent out for the required unlock procedure.
  • Custom Tuning Files - vehicle-specific calibration developed from the information supplied for the truck. A stock file and infolog are required before the custom tune can be prepared.
  • Tuner / Programming Interface - provides the connection required to read vehicle information and load the supplied calibration after the ECM unlock process is completed.
• DPF/DEF Delete Pipe or Exhaust System - replaces the restrictive factory exhaust section containing the DPF and DEF/SCR aftertreatment components. Depending on the selected configuration, the kit can be ordered with a delete pipe, complete 4-inch exhaust, or complete 5-inch exhaust system.
• Muffler Option - each exhaust configuration can be selected with a muffler for a more controlled exhaust note or without a muffler for a straighter exhaust path.
• EGR Delete Kit - includes the components required to remove or bypass the applicable EGR hardware and prevent exhaust gases from being recirculated through the intake system.
• CCV-Related Components - applicable CCV parts are included or configured according to the selected package and vehicle setup.
• Clamps & Installation Hardware - includes the necessary clamps, fittings, fasteners, and related hardware for the selected exhaust and delete components.
• Installation & Tuning Instructions - cover the mechanical installation, ECM unlock requirements, stock-file and infolog collection, and custom tune loading process.

Exact hardware varies according to the exhaust, muffler, EGR, and other options selected when ordering.

Tuning & Performance

The L5P DEF delete kit combines mechanical modifications with an ECM calibration designed specifically for the changed emission hardware. Removing the DPF, DEF/SCR, and EGR components without compatible tuning would leave the factory ECU looking for systems that are no longer present. The custom calibration changes the relevant control strategies so the engine can operate correctly with the selected off road hardware.

Unlike earlier L5P applications, the 2024-2025 platform requires the ECM to be unlocked before custom tuning. The stock file and infolog must first be obtained and submitted so the correct calibration can be built. Once the ECM has been unlocked and returned, the supplied tune can be written using the programming interface.

Available tuning can be ordered as a single calibration or as a multi-level package with power options reaching approximately +180 HP.

The higher power settings should only be used on a mechanically sound truck with supporting components appropriate for the requested output.

After installation and tuning, expected functional changes include:

• No DPF regeneration cycles
• No DEF consumption for the removed system
• Freer exhaust flow
• Calibration matched to the removed emission components
• Improved throttle response depending on tune selection
• Additional power according to the selected calibration
• Elimination of DPF/DEF/EGR-related control strategies associated with the removed hardware

Fuel economy and overall performance can vary with driving conditions, tune selection, tire size, supporting modifications, vehicle condition, and driving style.

Installation

Professional installation is recommended for the DEF delete for L5P Duramax 2024-2025 because the process involves both mechanical exhaust work and ECM removal, unlocking, and programming. The ECM cannot simply be flashed in stock locked form; it must first be removed and sent out for the required unlock procedure.

The typical process is:

1. Collect the required vehicle information and VIN.
2. Read and save the original stock file.
3. Generate and submit the required infolog.
4. Remove the ECM from the truck.
5. Send the ECM for unlocking.
6. Reinstall the unlocked ECM after it is returned.
7. Install the selected DPF/DEF delete pipe or complete exhaust system.
8. Install the applicable EGR and CCV components.
9. Load the vehicle-specific custom tune.
10. Check the truck for proper operation after programming.

Installation requires normal metric hand tools, sockets, extensions, penetrating oil, suitable lifting equipment, and appropriate safety equipment. A stable battery charger or power supply should be connected during programming to prevent a voltage drop while the ECM is being flashed.

Mechanical installation time depends on corrosion, exhaust configuration, vehicle condition, and shop equipment. Additional time must also be allowed for the ECM unlock process and custom tune preparation.

Ordering Information

Before ordering the L5P duramax DEF delete kit, select the required mechanical and tuning configuration for the truck.

Exhaust Options:

• Delete Pipe
• 4″ Exhaust System
• 5″ Exhaust System

Muffler Options:

• No Muffler
• With Muffler

Tuning Options:

• Single calibration
• 5-level tuning package up to +180 HP

The VIN and complete vehicle information must be supplied for custom tuning. The stock file and infolog are also required before the tune can be prepared, and the ECM must be sent out for unlocking.

Tuners are generally prepared within approximately 3-4 business days, while pipes and full exhaust systems typically require approximately 5-6 business days for processing. Components may ship separately because the tuner, exhaust parts, EGR hardware, and other parts can be fulfilled from different locations.

Technical support is available Monday through Friday, 9:00 AM-4:00 PM PST, for questions related to vehicle information, tune preparation, programming, and installation.

Custom tuning files, unlocked or programmed electronics, and other vehicle-specific digital or custom-configured products may not be eligible for return once processing or programming has begun. Customers should verify the VIN, model year, engine, and selected configuration before the order is processed.

This product is intended only for lawful off-road, racing, or competition applications. It is the customer's responsibility to comply with applicable local, state, provincial, and federal emission regulations.
