Full DEF Delete Kit w/ Bench-Flash Tuning | Ram 1500 EcoDiesel 3.0L | 2014-2019

DEF Delete Kit for Ram 1500 EcoDiesel 3.0L

The 2014, 2015, 2016, 2017, 2018, 2019 RAM 1500 Ecodiesel DEF delete kit is an All-in-One bundle for RAM 1500 pickups equipped with the 3.0L EcoDiesel engine. It combines vehicle-specific Bench-Flash Tuning, a T-409 stainless steel DPF/CAT Delete Pipe, and an EGR valve and cooler removal kit for the complete 2014-2019 emissions-off configuration.

Unlike a handheld tuner, Bench-Flash Tuning is performed directly on the original ECU after it is removed from the truck and sent in for programming. The calibrated ECU works with the supplied hardware to remove DPF, DEF/SCR, and EGR-related operation, eliminate regeneration for the removed filter, and provide a less restrictive exhaust path.

Why Choose This Kit

• Vehicle-specific Bench-Flash Tuning - the original ECU is professionally programmed for the selected tune level and emissions-off hardware.
• Three tune options - choose Economy, Stock Plus, or Race based on the desired power level.
• Complete 2014-2019 hardware package - includes the Delete Pipe plus EGR valve and cooler removal components.
• No handheld tuner required - the calibration is written directly to the ECU and remains installed after the module is returned.
• 2WD and 4WD support - designed for supported RAM 1500 EcoDiesel configurations.

Vehicle Compatibility

This RAM 1500 Ecodiesel DEF delete kit is specifically written around the Gen 2 2014-2019 EcoDiesel configuration. The current catalog also offers later 2020-2023 EcoDiesel applications, but those use a different hardware setup; the physical EGR Delete Kit listed with this full package applies to the 2014-2019 configuration.

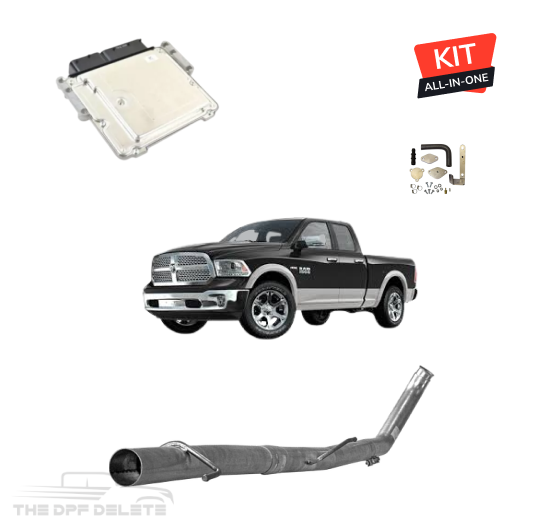

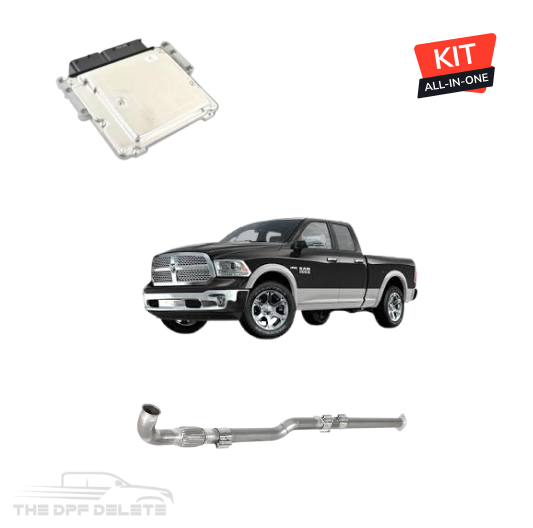

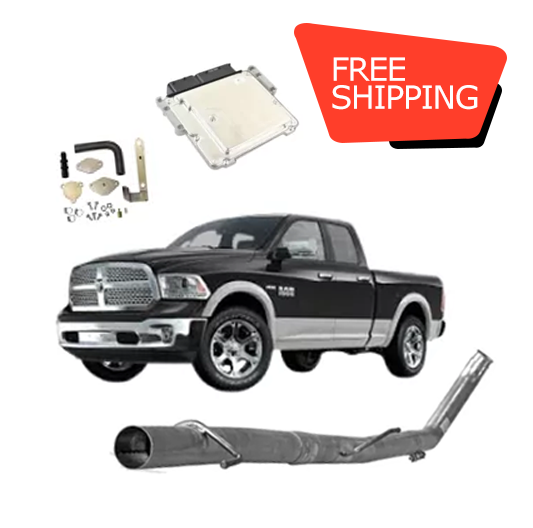

Kit Components

• Bench-Flash ECU Tuning - the original engine control module is removed from the vehicle, sent in, and programmed directly using bench-flashing equipment. No separate handheld tuner remains installed in the truck.
• Custom ECU Calibration - adjusts engine operation for the removed DPF, DEF/SCR, and EGR systems and applies the selected Economy, Stock Plus, or Race power level.
• T-409 Stainless Steel Delete Pipe - replaces the restrictive factory DPF and catalytic/SCR exhaust section, reducing backpressure while retaining the appropriate remaining exhaust configuration.
• EGR & Cooler Delete Kit - includes the block-off and removal hardware required to remove the factory EGR valve and cooler on supported 2014-2019 trucks.
• Installation Hardware - includes the clamps, fasteners, plates, and related parts required for the supplied exhaust and EGR components.

The RAM Ecodiesel 3.0 DEF delete kit should be ordered as a matched package. Hardware from the 2020-2023 generation should not be substituted simply because both trucks use a 3.0L EcoDiesel engine.

Tuning & Performance

Bench-Flash Tuning is a Single calibration, not an SOTF system. The customer chooses the desired tune level before the ECU is programmed.

Economy retains factory-level horsepower while recalibrating the ECU for the removal configuration. Stock Plus adds approximately 30 HP, while Race provides approximately 50 HP for customers looking for additional horsepower and torque.

The RAM 1500 DEF delete kit also eliminates DPF regeneration after the filter is removed and allows freer exhaust flow. Throttle response and drivability may improve, while fuel economy depends on tune selection, vehicle condition, tire size, load, driving style, and other modifications. Fixed MPG improvements should not be treated as guaranteed results.

Installation

The correct sequence begins before any DPF, DEF, or EGR hardware is removed. The truck should be operating correctly in its existing configuration; clear active emissions-related faults, complete a full DPF regeneration when required, resolve any DEF countdown or derate condition, and return a previously tuned ECU to stock before removing it for Bench-Flash service.

Remove the original ECU according to the supplied guide and send it in for programming. After the Bench-Flash service is completed and the ECU is returned, reinstall the module and complete the Delete Pipe and EGR/cooler hardware installation before putting the truck back into service. Standard hand tools, exhaust tools, penetrating oil, and safe access underneath the vehicle are normally sufficient for the mechanical work.

An experienced DIY owner can remove and reinstall the ECU and install the hardware, but professional help is appropriate if the truck has unresolved diagnostic faults, heavy corrosion, previous tuning, or non-factory engine and exhaust modifications.

Ordering Information

Before ordering, confirm a supported 2014-2019 RAM 1500 EcoDiesel 3.0L and select the required tune level: Economy, Stock Plus, or Race. The current product configuration uses the vehicle’s original ECU, which must be removed and shipped for Bench-Flash programming.

The normal process is:

1. Complete the required pre-tuning checks while the truck still has its factory emissions hardware.
2. Remove the original ECU.
3. Ship the ECU using the provided shipping instructions.
4. The ECU is Bench-Flashed with the selected calibration.
5. The programmed ECU is express-shipped back for reinstallation.

Typical Bench-Flash service is approximately 4-6 business days after the ECU is received, plus roughly 2-3 business days for return shipping. Hardware can ship separately from the ECU service, so the Delete Pipe and EGR components may arrive before the programmed module is returned.

DEFdelete currently lists the package as in stock and advertises free shipping on DEF Delete Kits. Because the ECU programming is vehicle-specific, confirm the year and selected tune level before the module is flashed.
